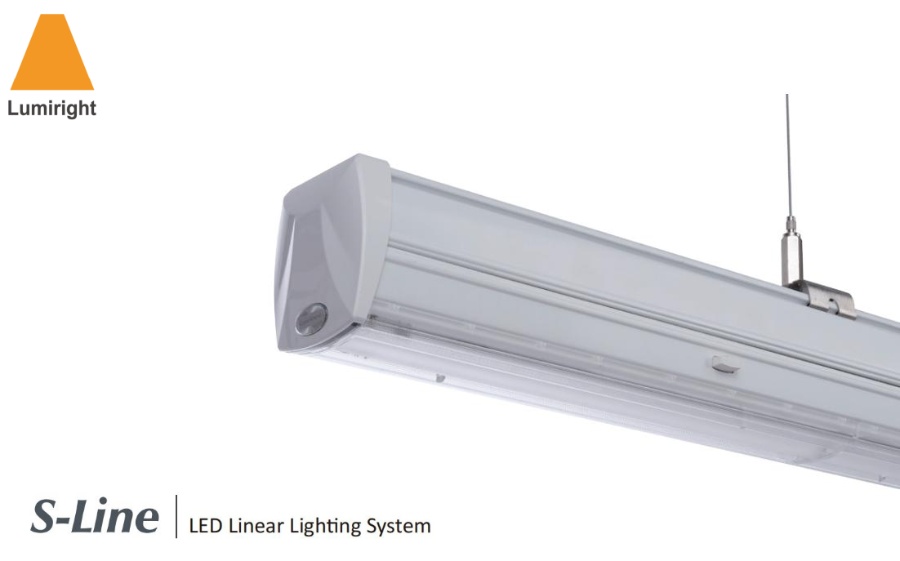

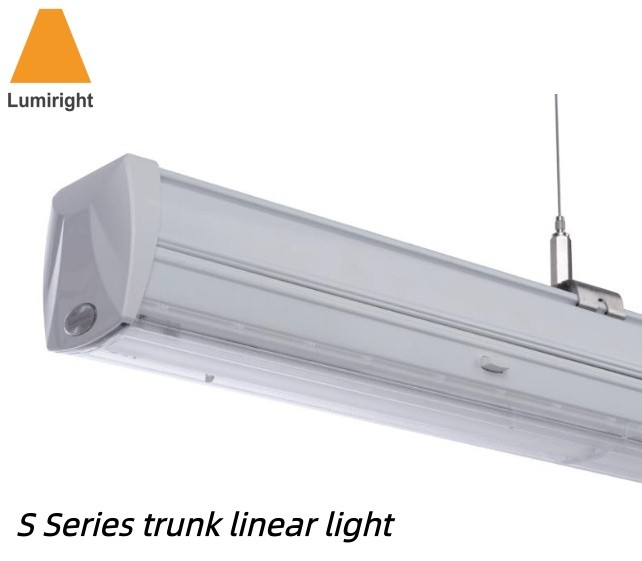

1. Easy Installation: 3-phase pre-selection is achievable by shifting the trunk linear light male connector pin left or right for rail mounting; pre-assembled connectors with integral plug-in system.

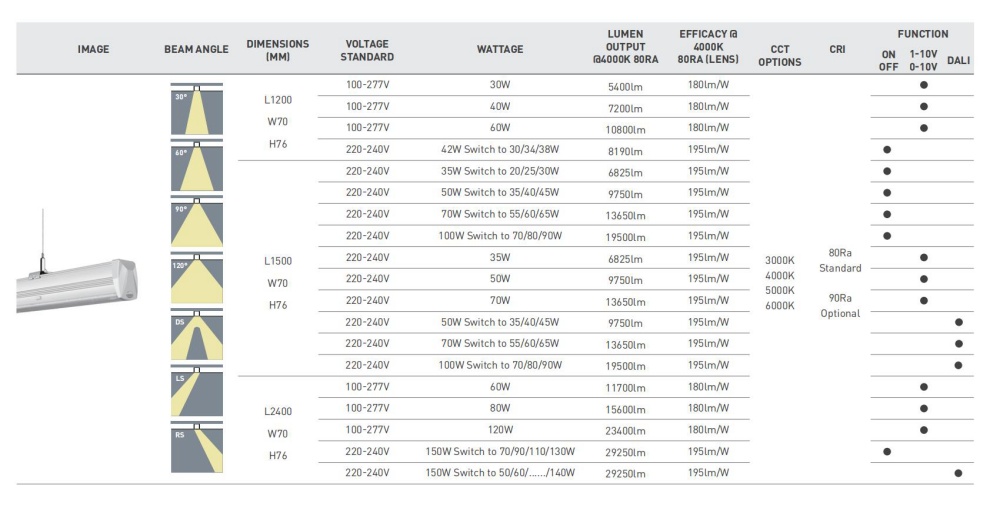

2. 195LPW and various symmetric and Asymmetric beam angle for wide application.
3. Standardized High-performance Trunking Rail：Equipped with 5/8/12-core through-wiring.

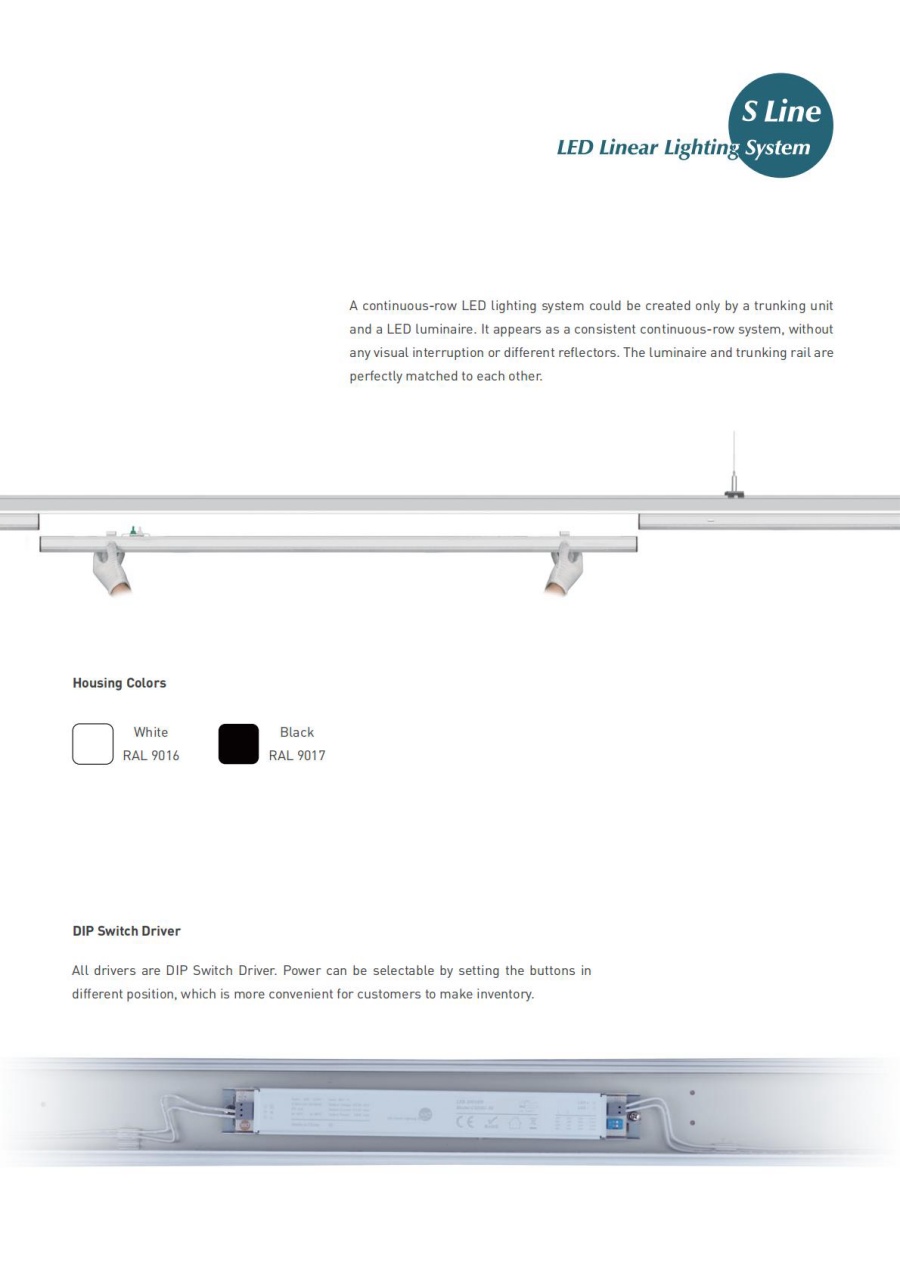

4. Convenient for inventory: Power selectable by dip switch driver, non-dimmable, 0-10v or Dali dimming optional.
Features:
1. Easy Installation: 3-phase pre-selection is achievable by shifting the trunk linear light male connector pin left or right for rail mounting; pre-assembled connectors with integral plug-in system realize simple mechanical & electrical connection of trunking rail elements.

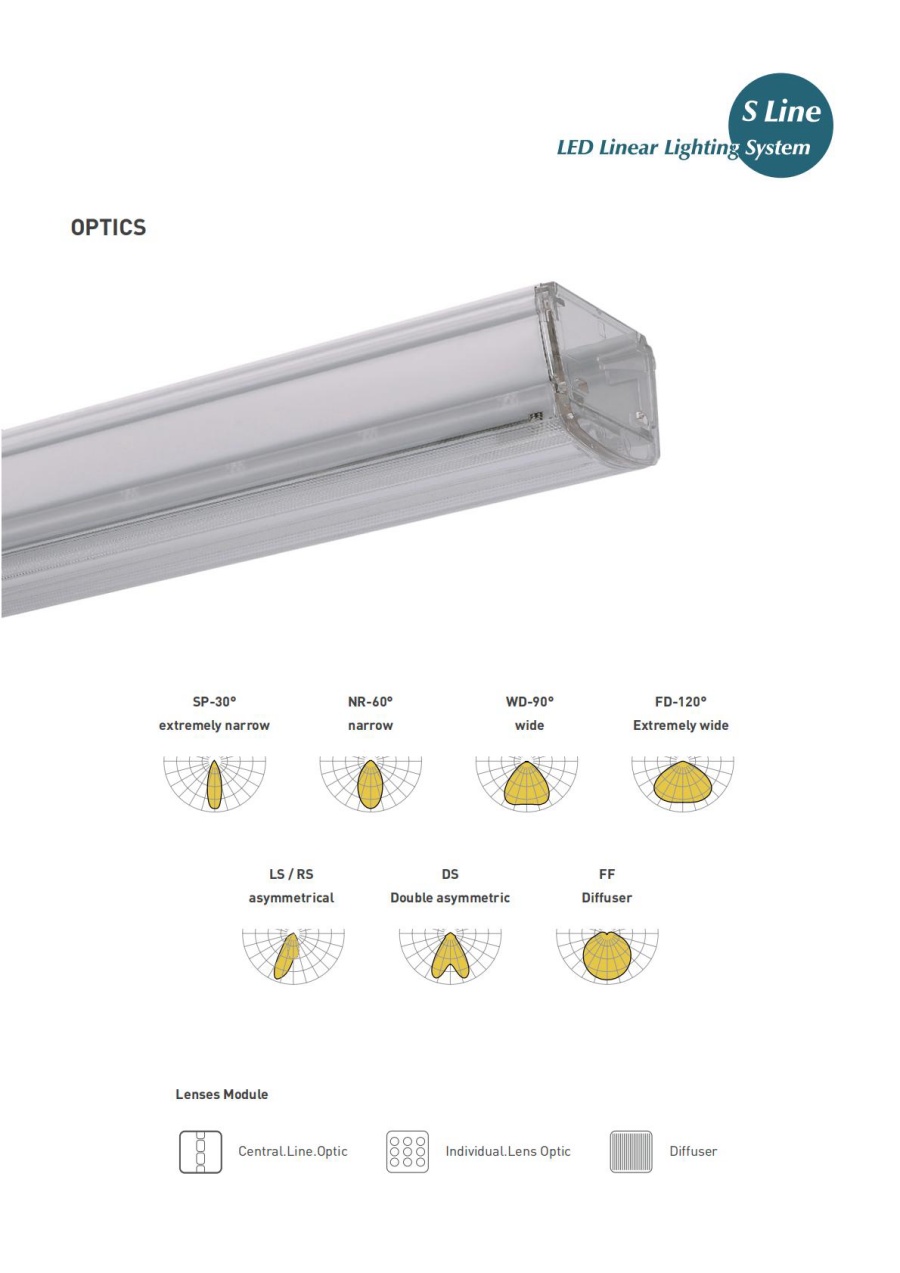

2. 195LPW and various symmetric and Asymmetric beam angle for wide application.

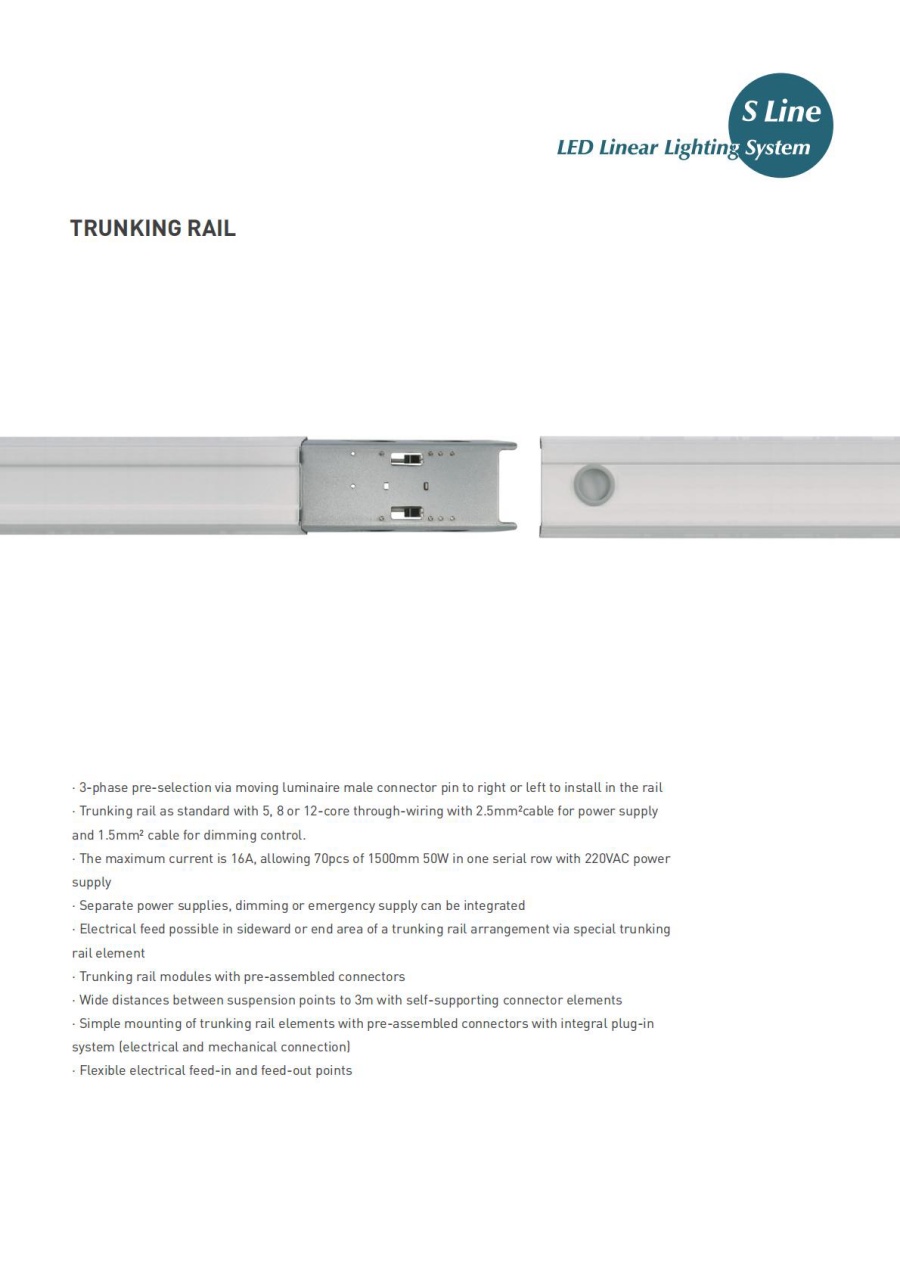

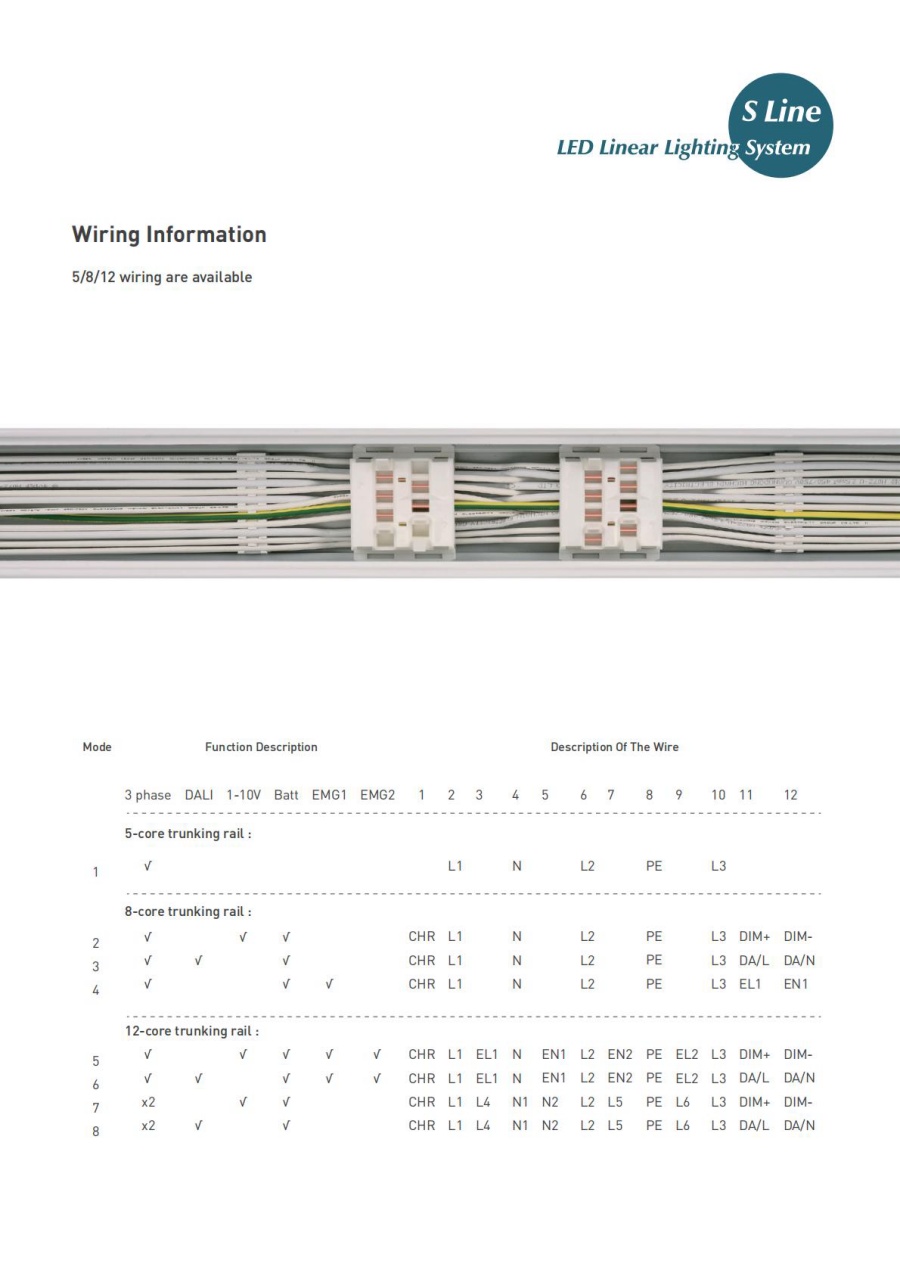

3. Standardized High-performance Trunking Rail：Equipped with 5/8/12-core through-wiring (2.5mm² cable for power, 1.5mm² for dimming control) as standard, with max 16A current — supports 70 pieces of 1500mm 50W lights in one serial row under 220VAC.

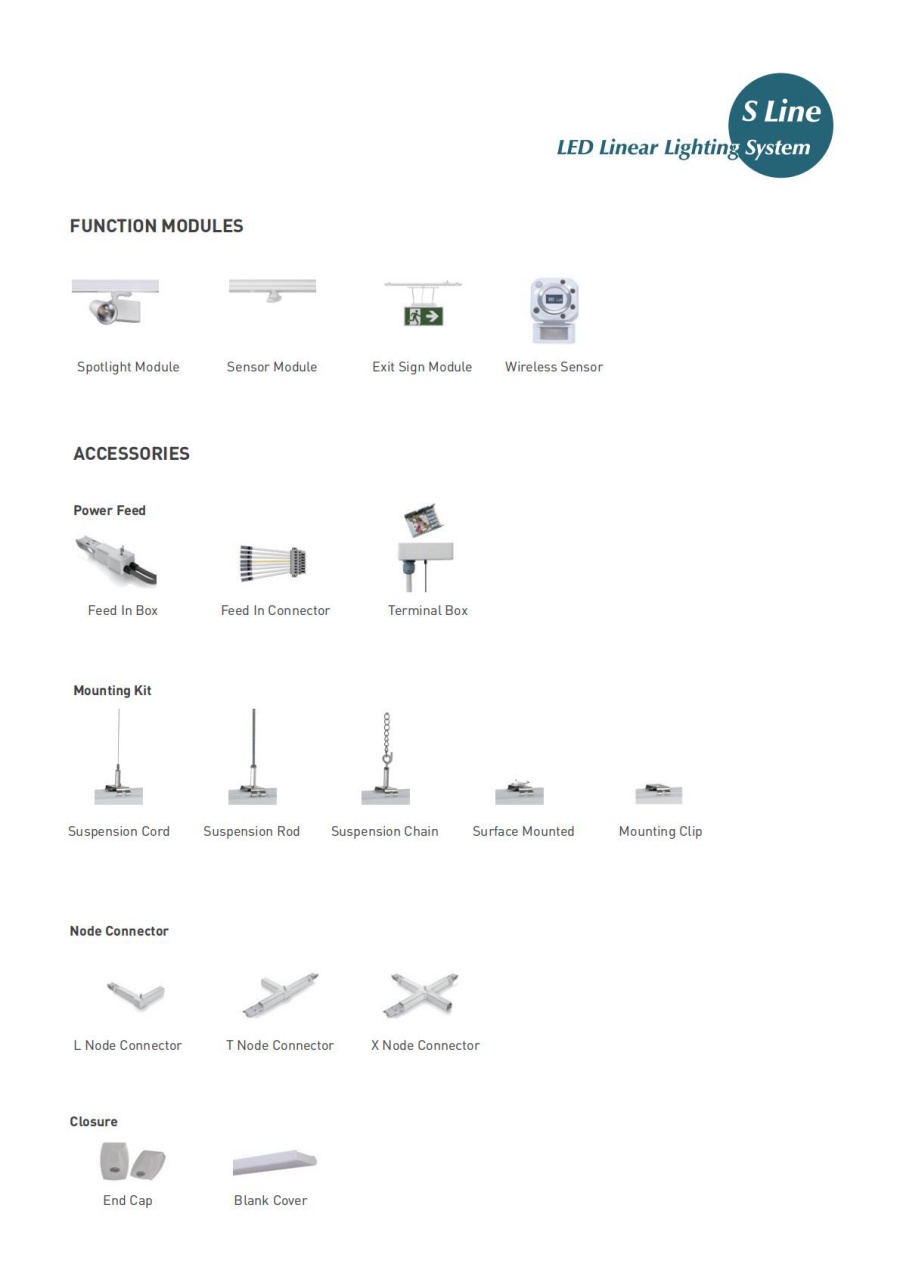

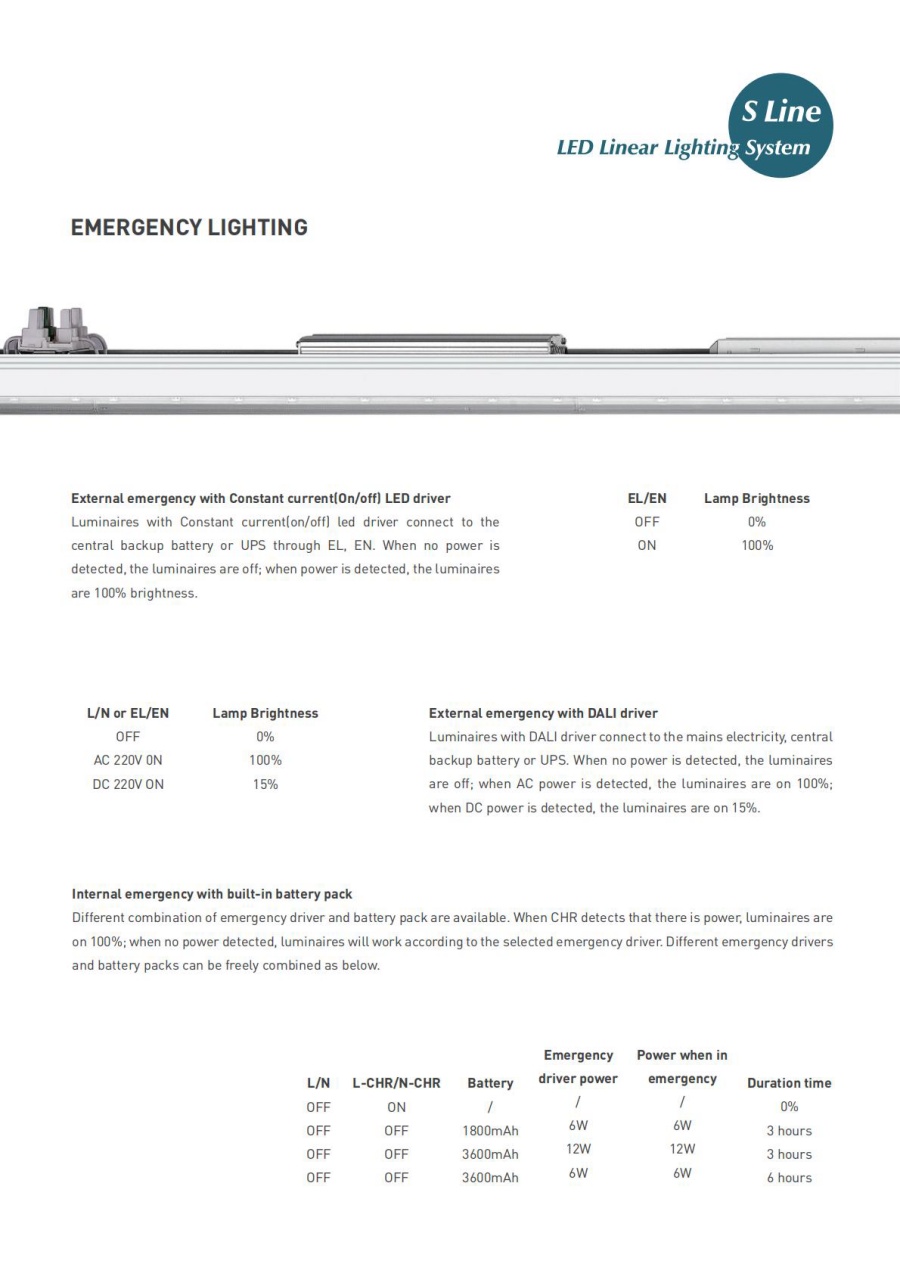

4. Versatile Power Supply & Integration: Flexible electrical feed-in/feed-out points (sideward/end area via special elements); separate power, dimming or emergency supply can be integrated seamlessly.
5. Convenient & Stable Suspension: Features self-supporting connector elements, enabling wide suspension point distances up to three meters for flexible layout and reliable fixation.
Details:
