HB19 Multifuctional highbay light power&CCT&beam angle selected

1.Material: Die-cast aluminum (ADC12) + Japan Teijin PC lens;
2.Efficiency: 140-190 lm/W

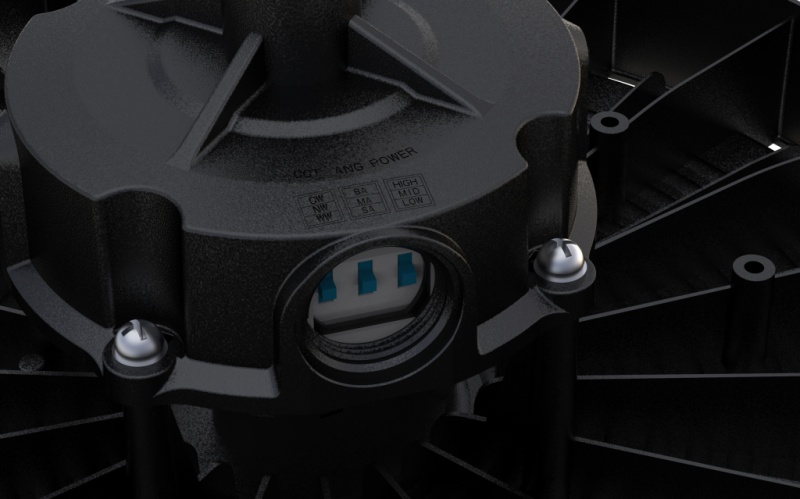

3.Power & CCT & beam angle selected;
4. LED Driver: MOSO / Lifud / Sosen Driver;
5.Warranty: 5 years

HB19 Multifuctional highbay light power & CCT & beam angle selected 60-240w


Features

1.Material: Die-cast aluminum (ADC12) + Japan Teijin PC lens

2.Efficiency: 140-190 lm/W

3.Power Selected: 100/80/60w (D295mm); 150/120/100W (D295mm)

200/150/100W (D320mm); 240/200/150W (D295mm); 300/240/200W (D326mm);

4. CCT Selected: 3000/4000/5000k or 4000/5000/5700k

4.LED: Philips Lumileds SMD2835

5. LED Driver: MOSO / Lifud / Sosen Driver 0/1-10V

6.Beam Angle: 60° , 90°, 120°

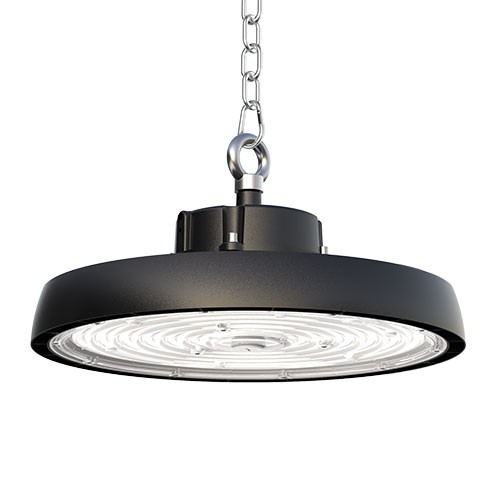

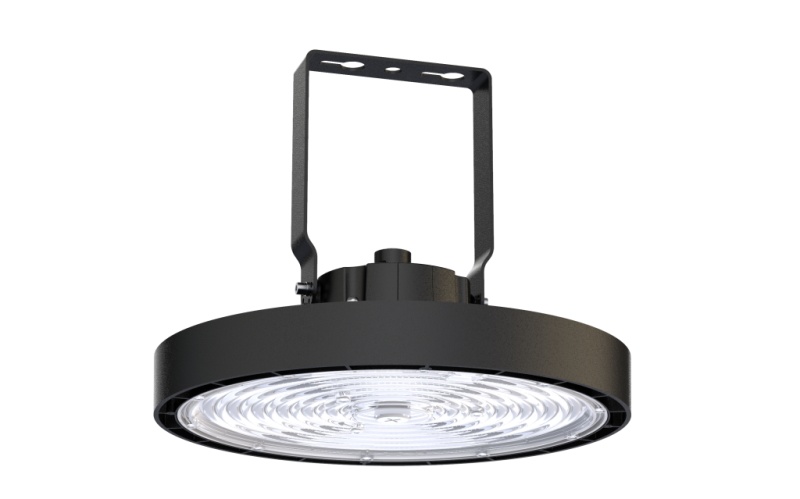

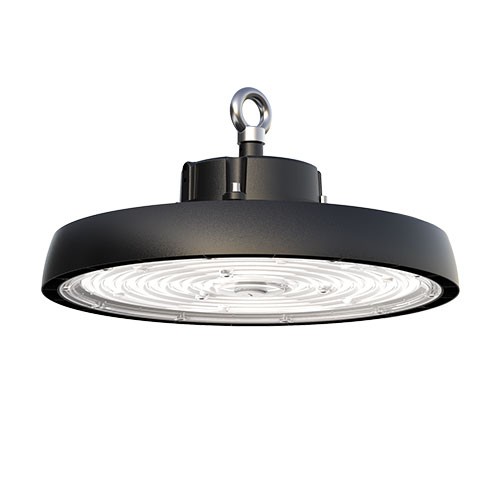

7.Mounting: Suspension / surface bracket

8.Warranty: 5 years

9. Others: IP65, IK08, Sensor and emergency optional.


Benefits

★ 3 Power&CCT&beam angle, 27 options in one→ saves inventory cost

★ High efficiency Max 190lm/w → lowers energy bills

★ Dimmable & durable → smart control + long lifespan

★ Easy installation → flexible for any space


Advantages

● 27options all-in-one customization – fewer SKUs, easier ordering

● Premium components – reliable, flicker-free lighting

● Future-ready – supports smart lighting upgrades

● Cost-effective – energy savings + 5-year warranty

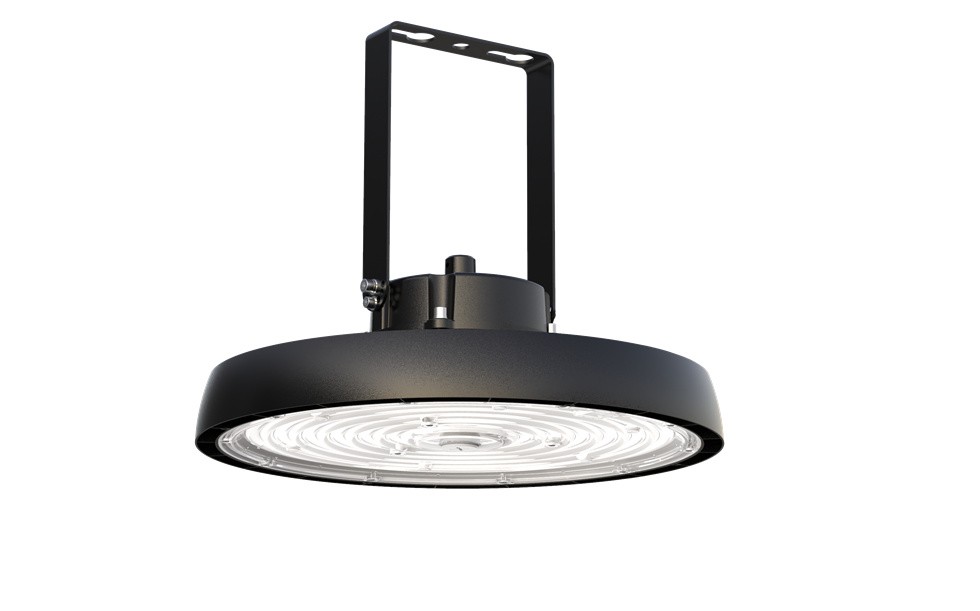

hb19 king.jpg

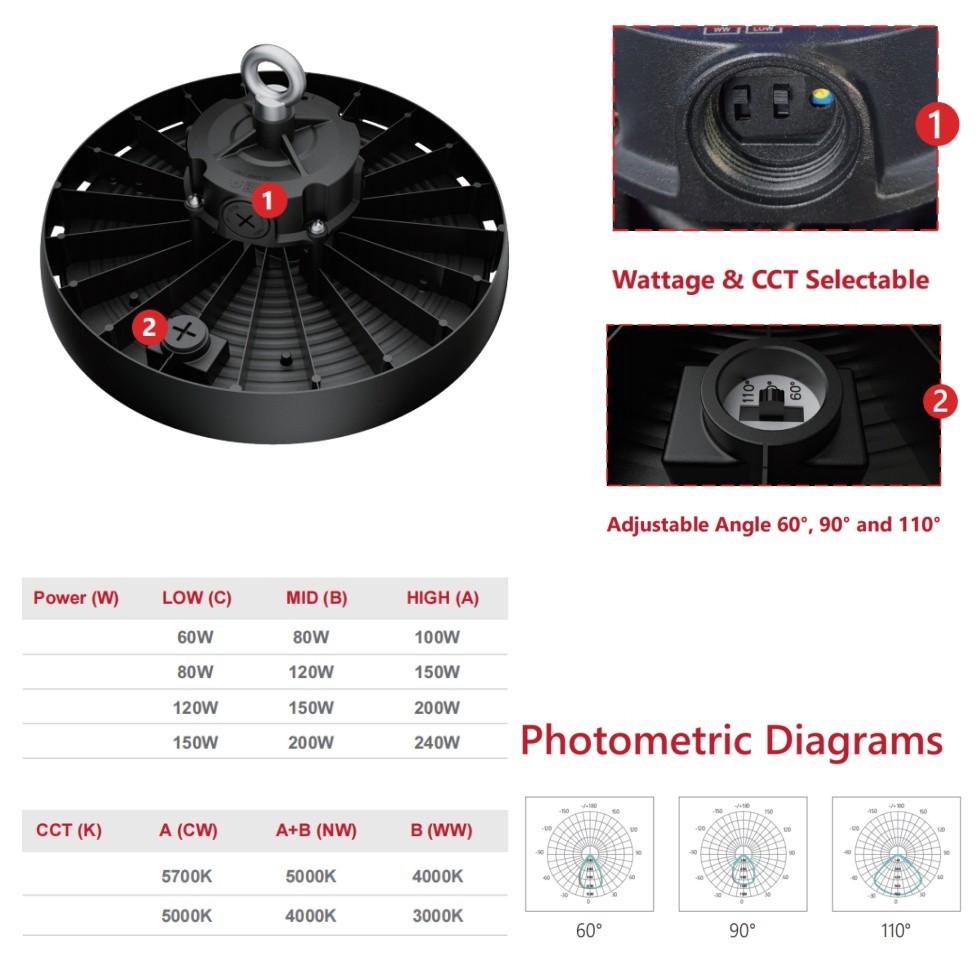

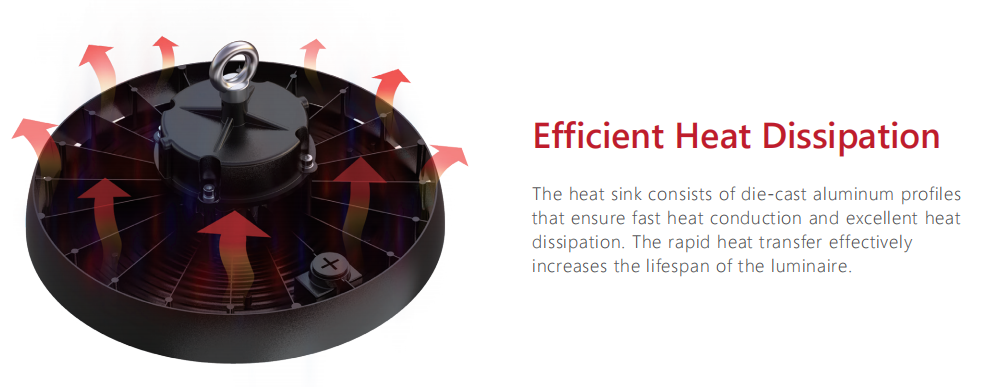

HB19 HEAT DISSIPATION.jpg

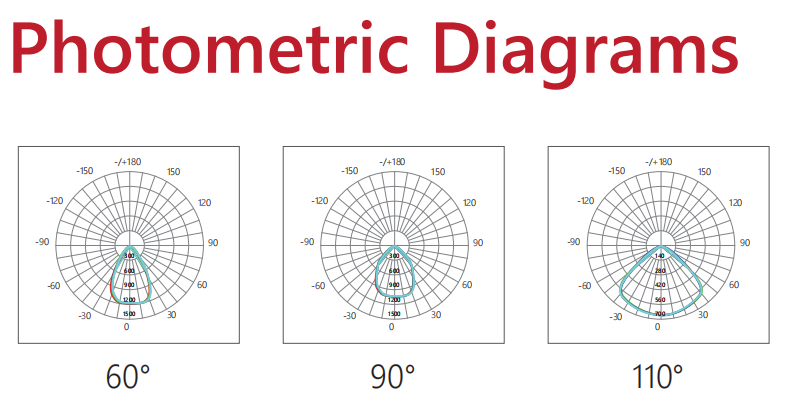

OPTIC HB19.jpg

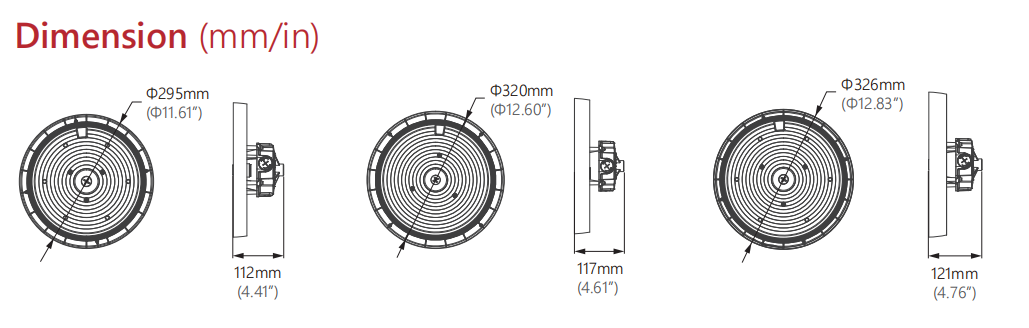

HB19 SIZE.jpg

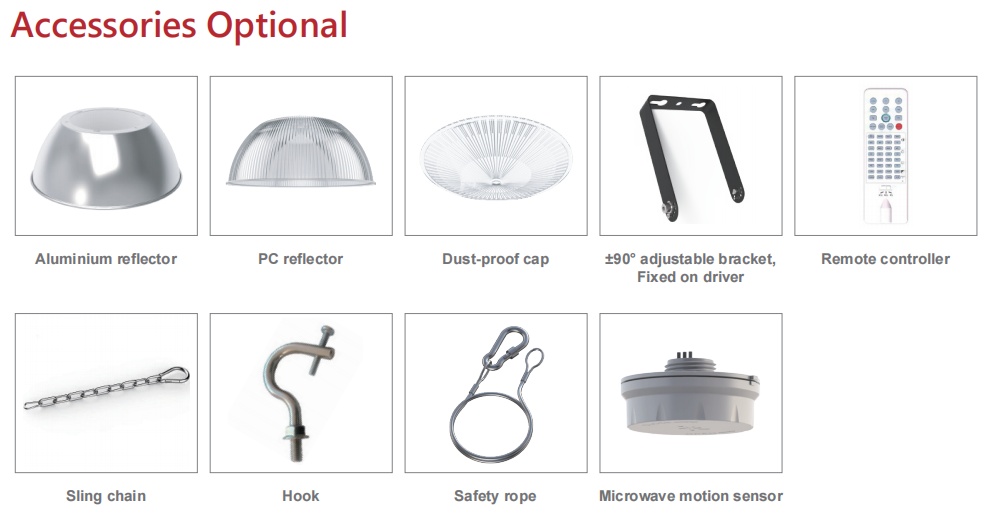

HB19 ACCESSORY.jpg
