130LPW UGR17 LED Downlight-LR-DL127

1. Lighting Efficacy: >130lm/w @CRI90;
2. Light source: SMD2835;
3. Beam Angle: 60°.
4. Main materials: Die-casting ADC12 and Opal PC Diffuser;
5. Finish: Matt White | Black Trim;
6. Reflector color: Mirror / Gloden / Matt white / Matt black.
7. 5yr warranty and UGR<19.

Features:

Wattge: 15W | 25W | 35W

Efficacy: Up to 150lm/w;

Beam Angle: 60°. UGR<17.

LED Chip: San'an / Hongli / Lumileds / Osram / Bridgelux / Cree optional

CRI: Ra80 | Ra≥90 optional

CCT: 2700 K| 3000K | 3500 | 4000K | 5000K | 5700K | 6500K.

Housing: Die-casting Aluminium ADC12;

Diffuser: Opal PC Diffuser;

Trim: Matt White | Black

IP Grade: IP20

LED Driver: Lifud / Boke / Eaglerise / Tridonic / Osram / Philips optional;

Controlling: Non-dim, Triac, 0/1-10v and DALI&PUSH.

Application: Mall, Supermarket, Office building, retail shop, public building, Lobby & Reception, Corridor & Hallway and commercial buildings.


Dimension:

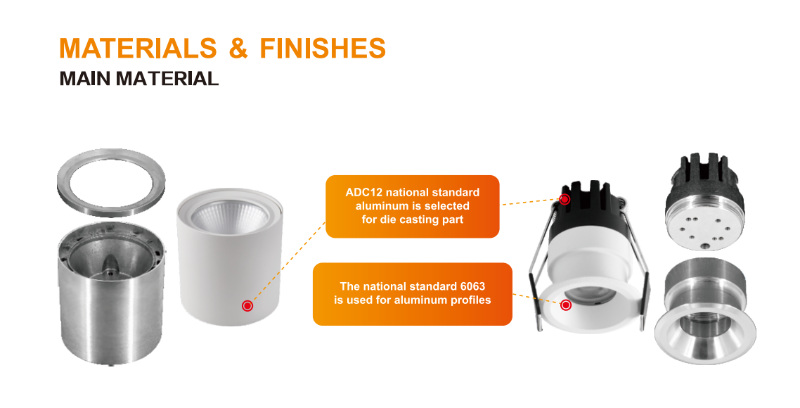

materials & finishes.png

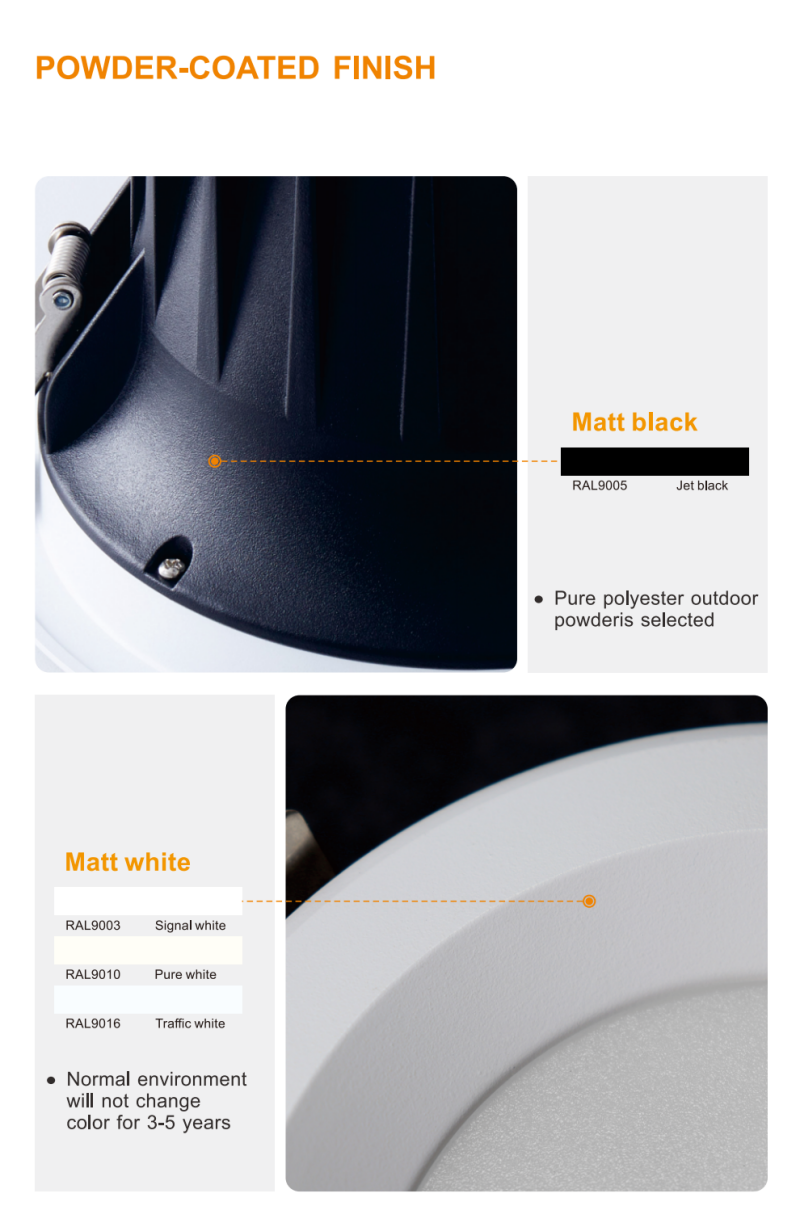

powder coated finish treatment.png

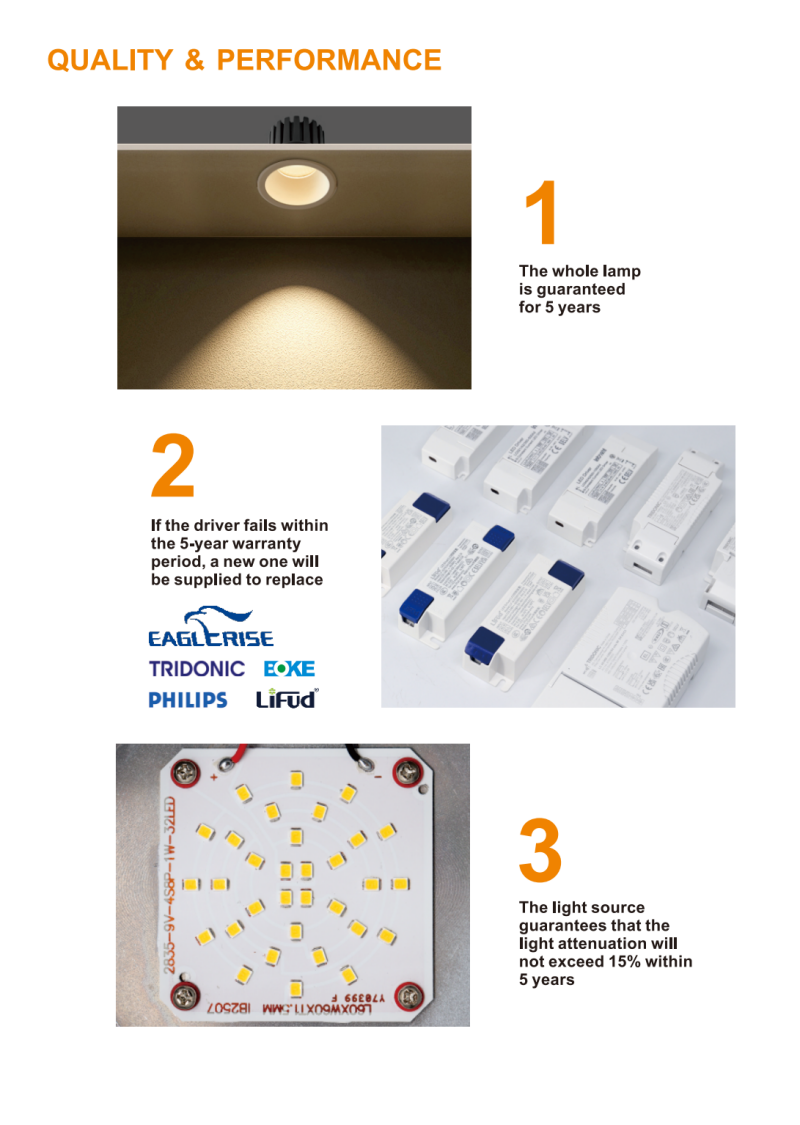

QUALITY AND PERFORMANCE1.png

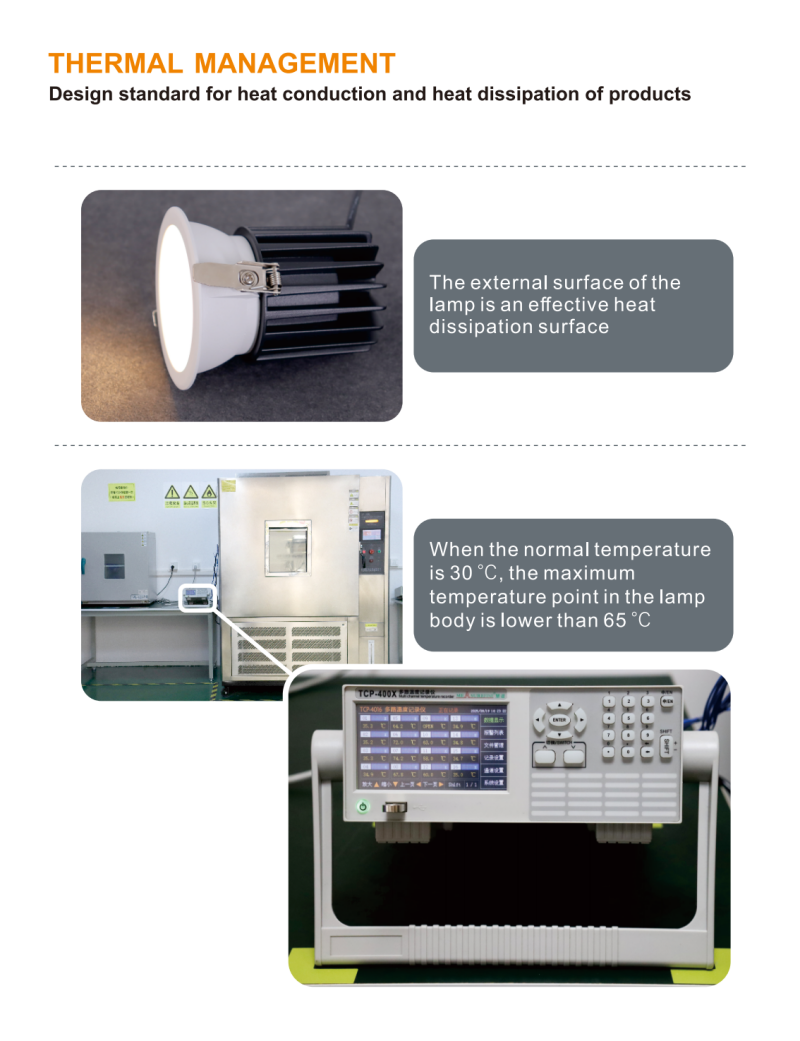

THERMAL MANAGEMENT.png


INQUIRY
